The products listed above are based exclusively on custom.
We have also available from our stock a serie of items coming from our production (mainly linked to optics used for lighting applications) and free from sales constraints which – through a focused and custom research – we can propose to our customers on request

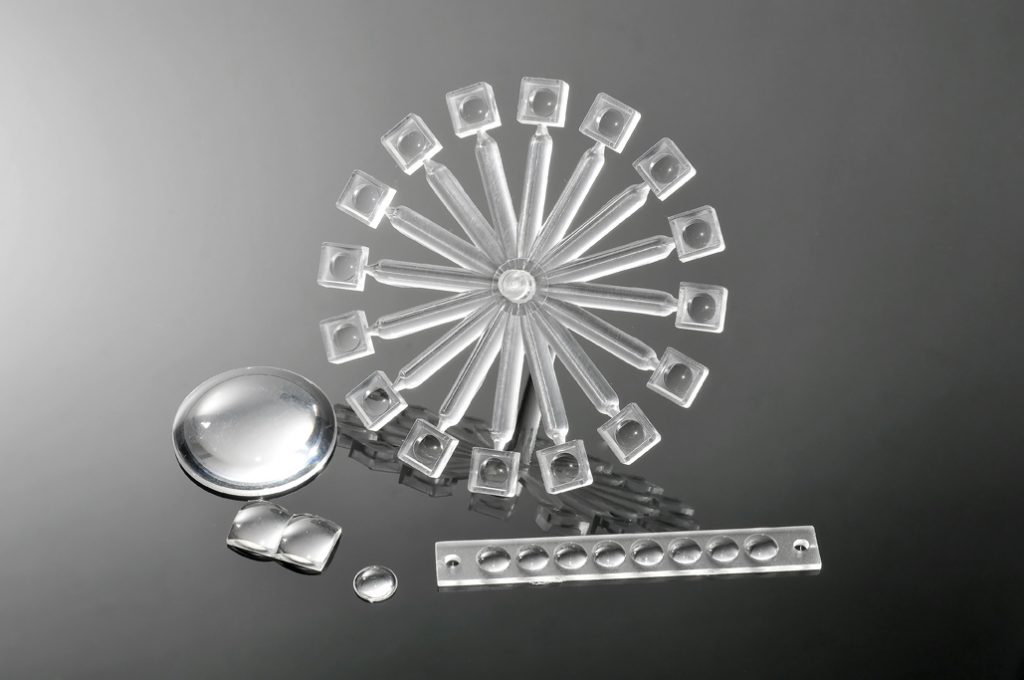

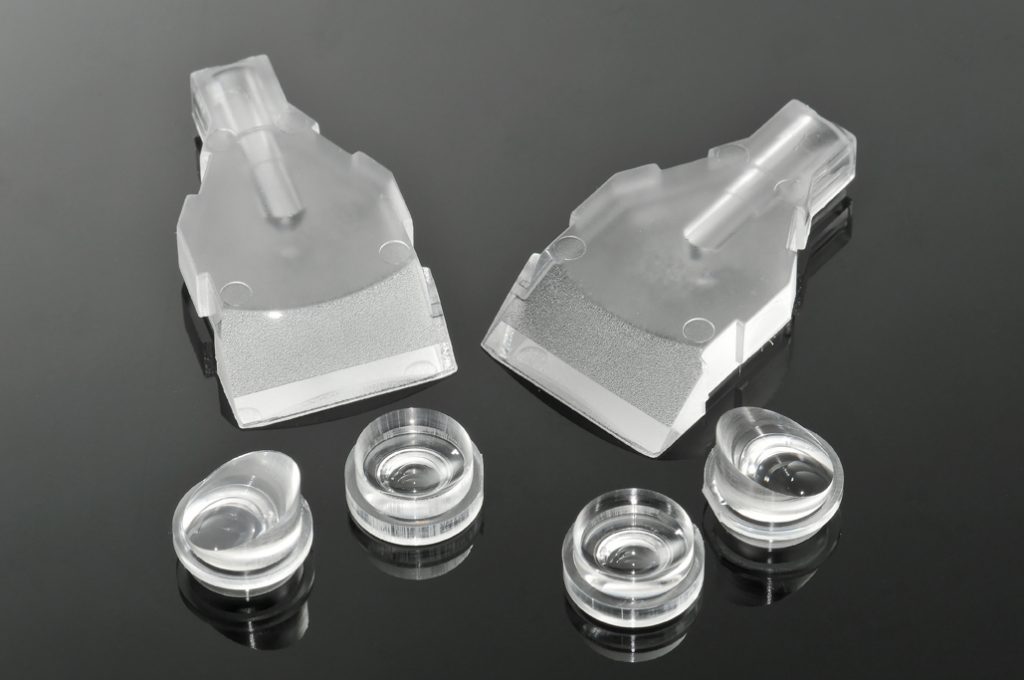

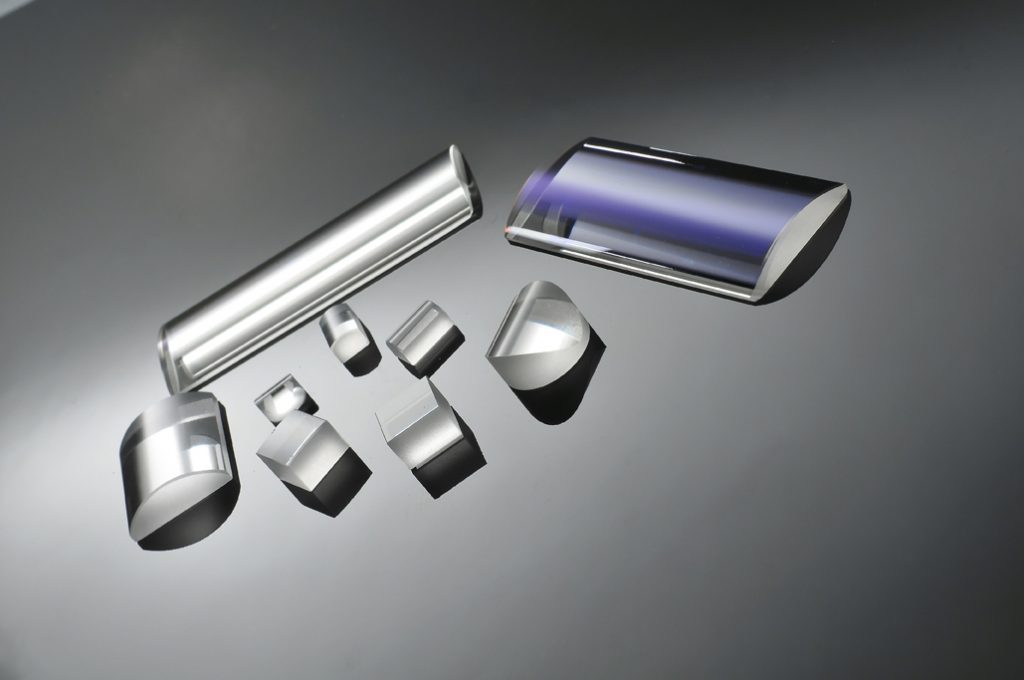

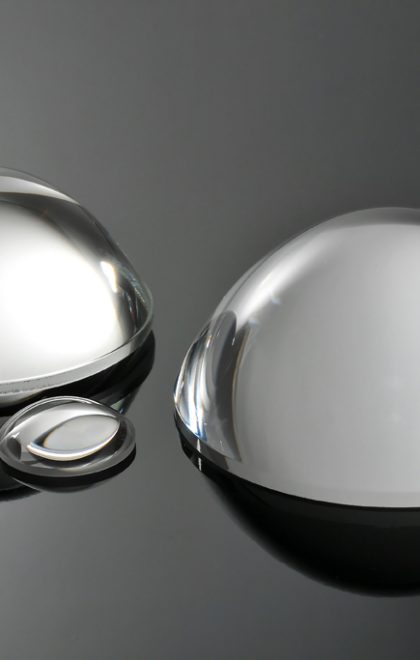

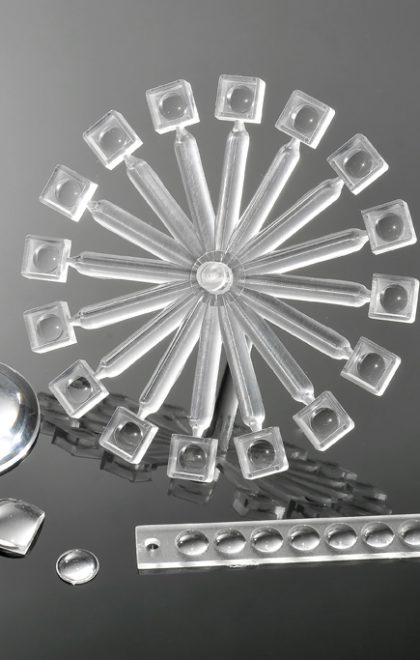

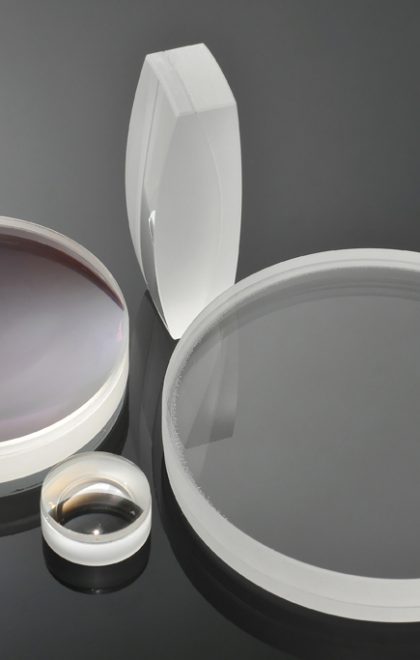

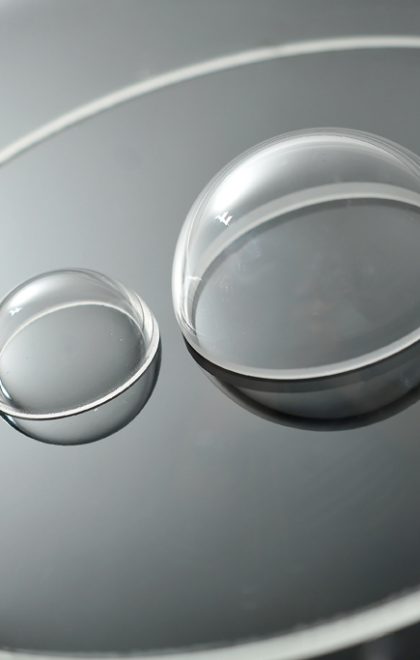

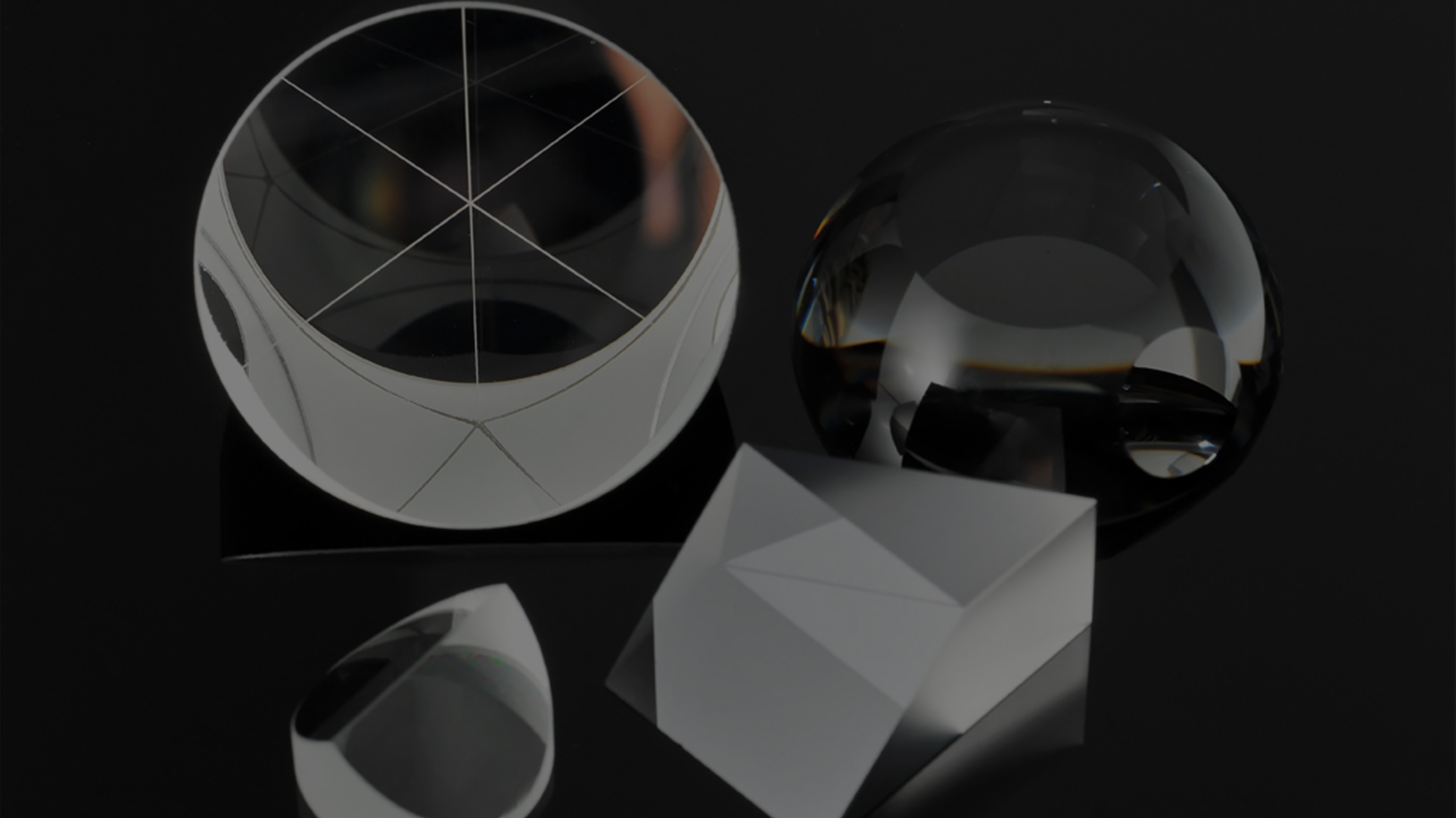

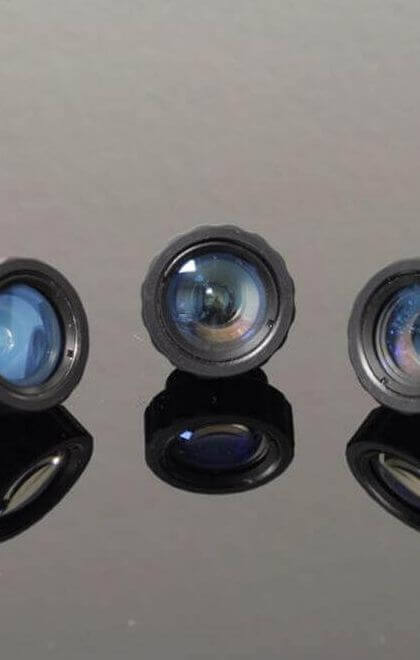

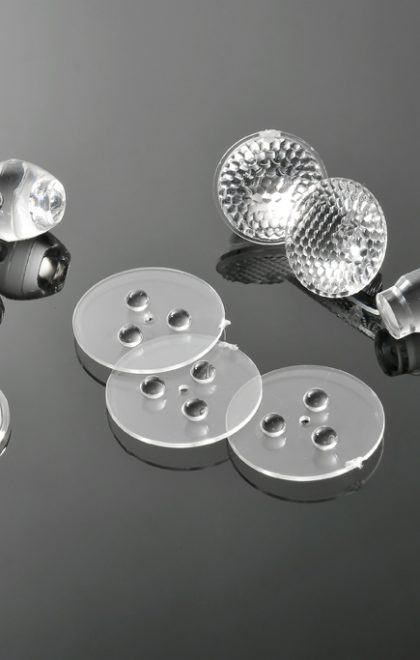

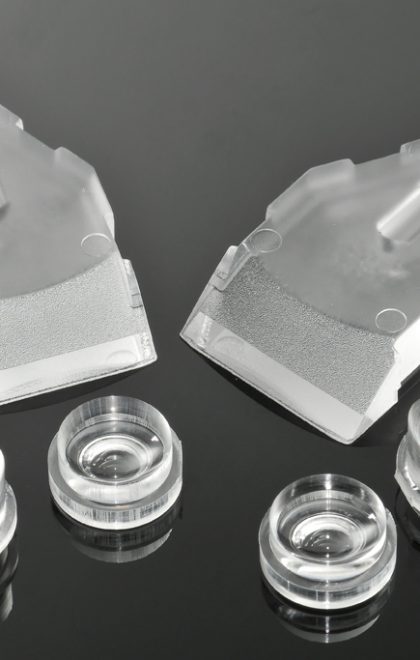

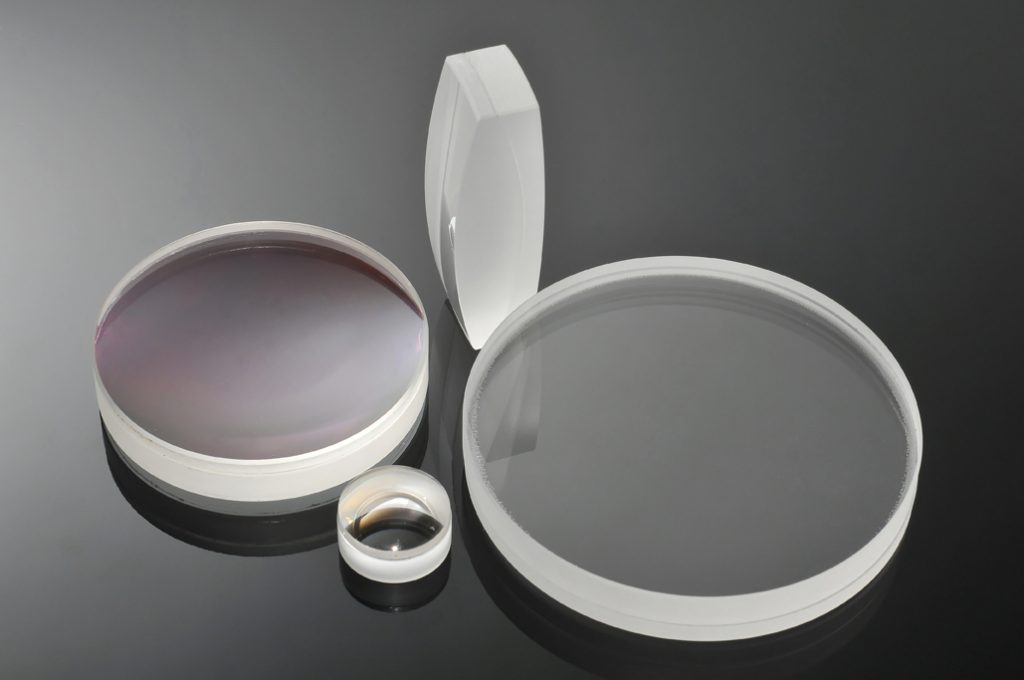

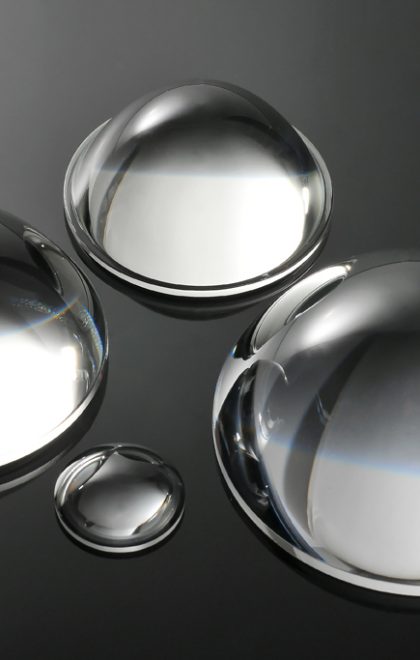

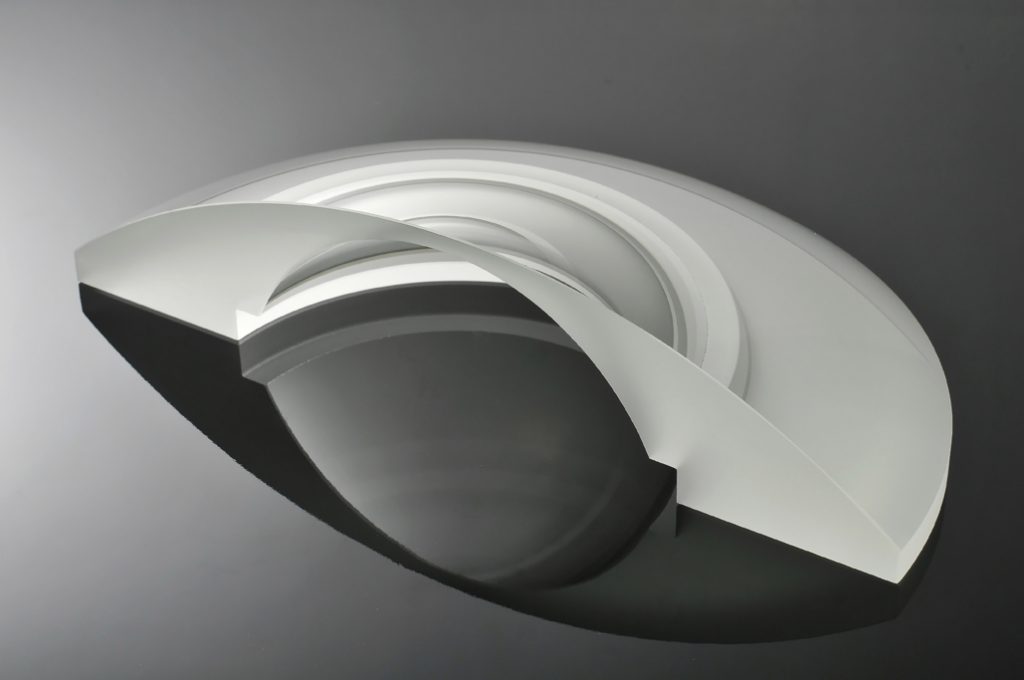

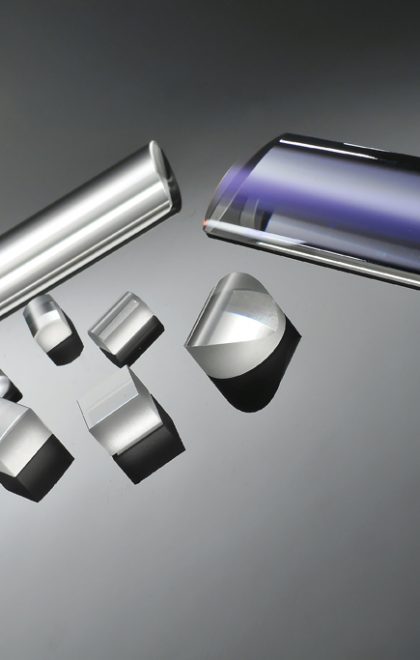

It directly produces, through modern and advanced CNC centers, optical elements made of glass (lenses, doublets, triplets, achromats, optical filters, optical prisms, optical mirrors, plano optics, light guides) and made of optical plastics (LED lenses for optoelectronics/lighting application made through CNC processes or molded in PMMA or PC)

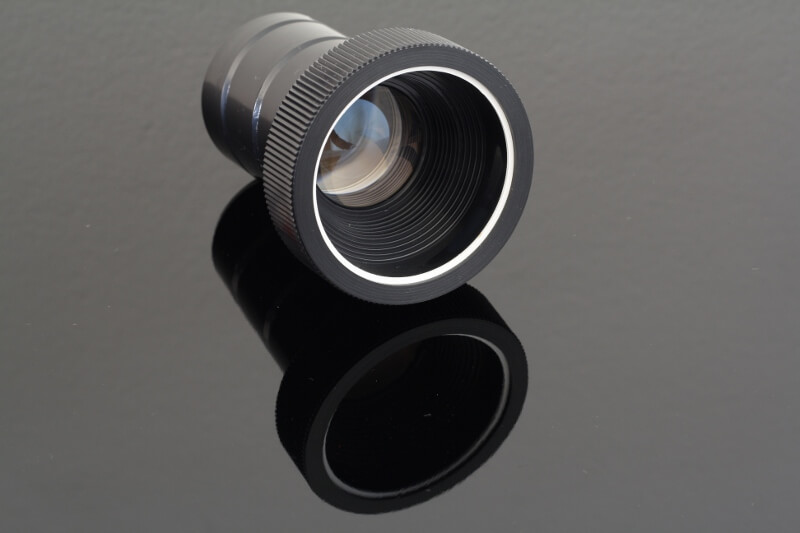

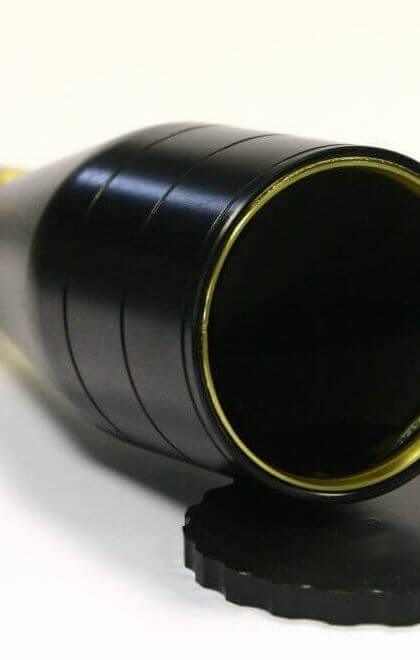

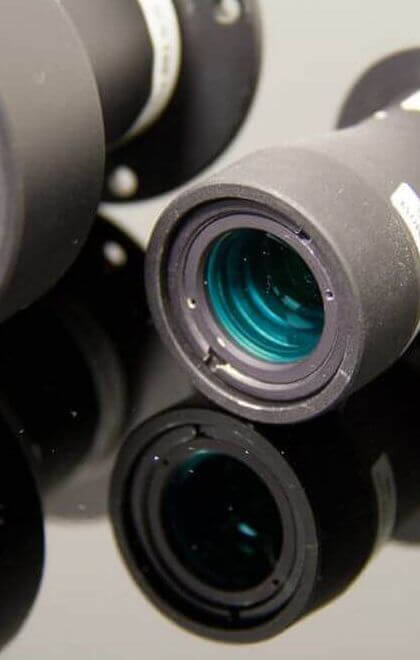

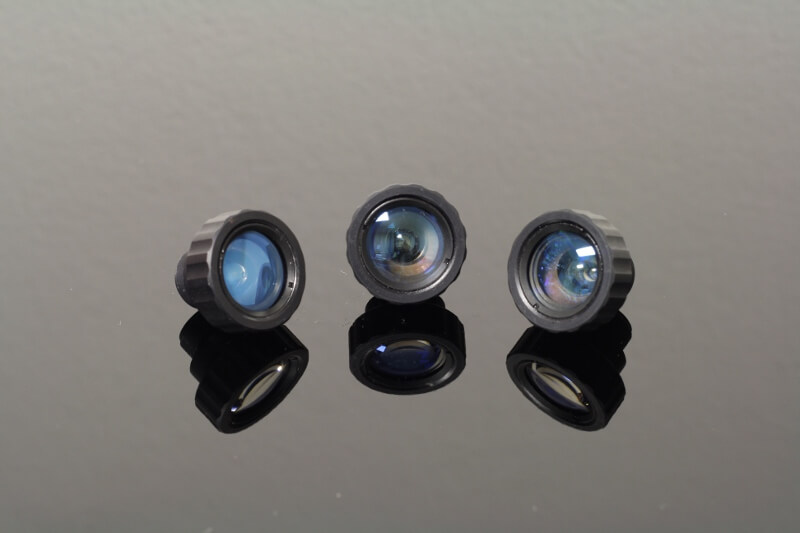

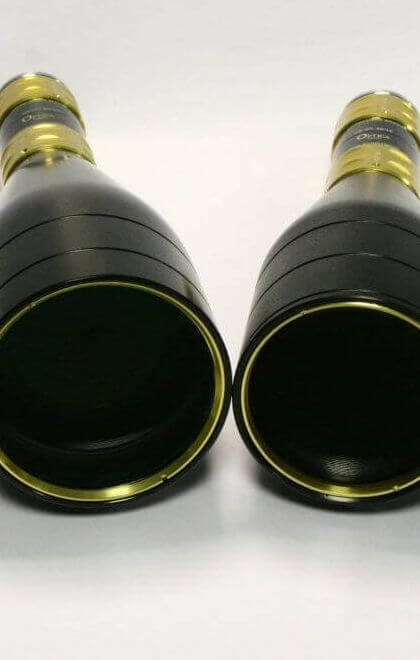

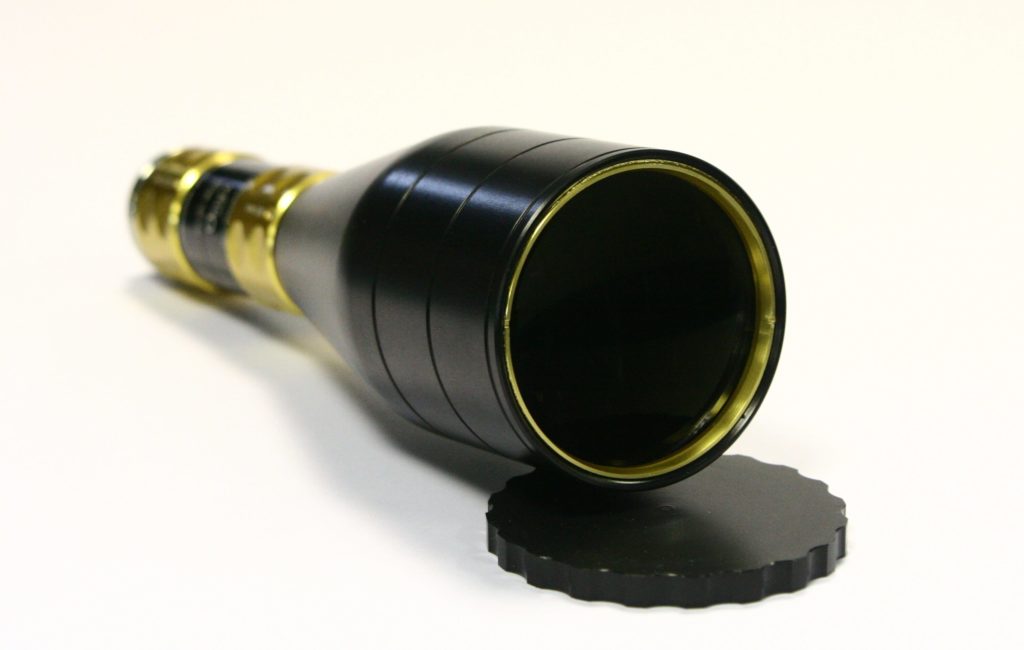

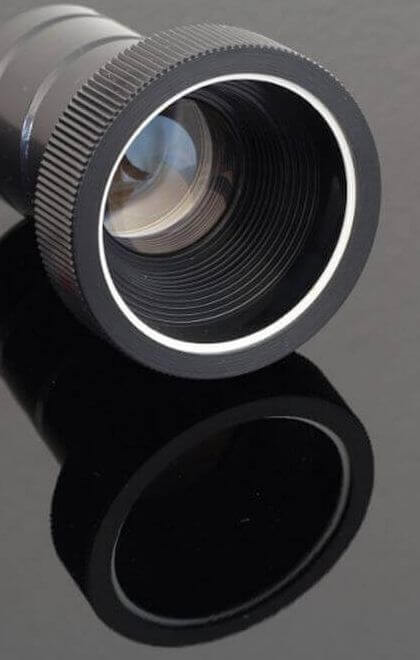

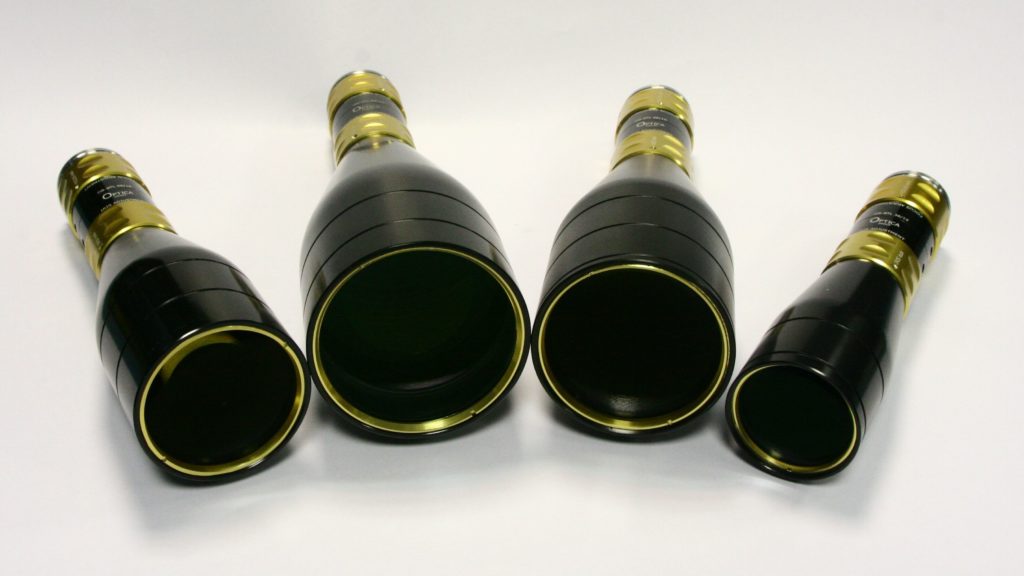

The production activities of these components is completed by the capability of making optical assemblies, opto-mechanical calibration and testing (mounting of finished optical sistems like objectives, light projectors, ecc..) and by an optical and opto-mechanical engineering service specifically studied for all those fields where imaging or lighting applications may be needed

Tecnottica Consonni Srl is an optical manufacturing company established in Calco (Italy) since 1957.
Tecnottica Consonni Srl is definitely the reference company for the italian optical market with, at the same time, a marked and defined tendency for all international markets

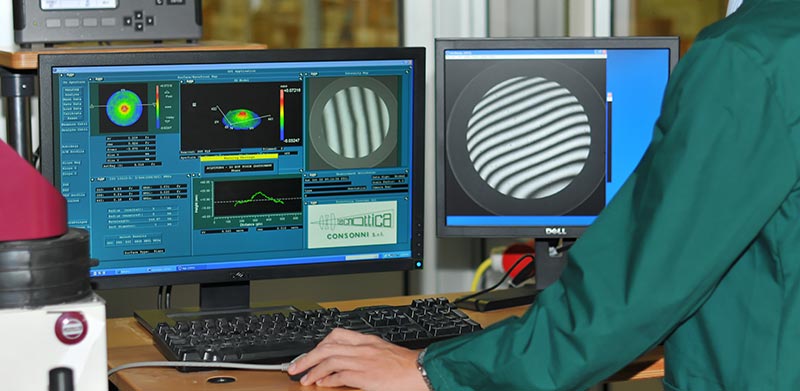

production

THE SERVICES OF
TECNOTTICA

  • Manufacturing of optical components starting from customer’s drawing
  • Assembly, calibration and test of completed optica systems
  • Optical certifications on single elements and on complex optical systems
  • Optical and opto-mechanical engineering
  • Rapyd protototyping on PMMA for lighting optics

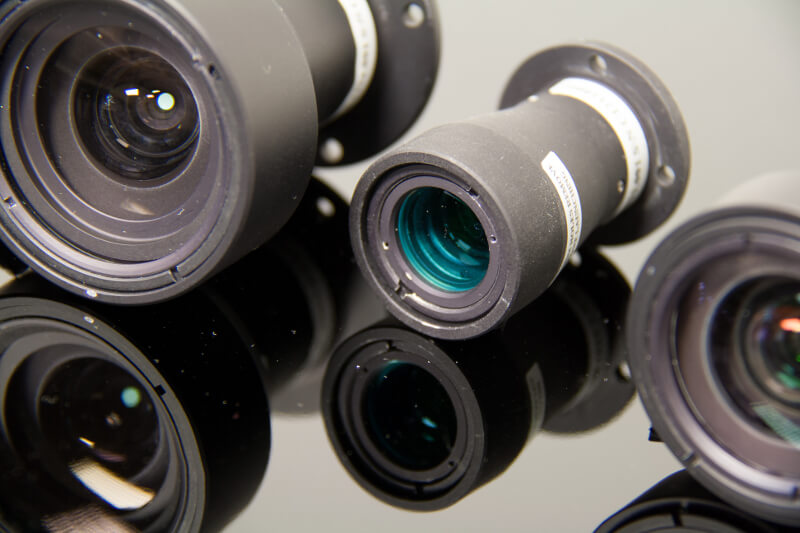

MARKETS

  • Industrial Optics
  • Machine Vision
  • Automotive
  • Biomedical
  • Optoelectronics
  • Aerospace
  • Industrial Lighting
  • Architectural Lighting (for interiors and exteriors)

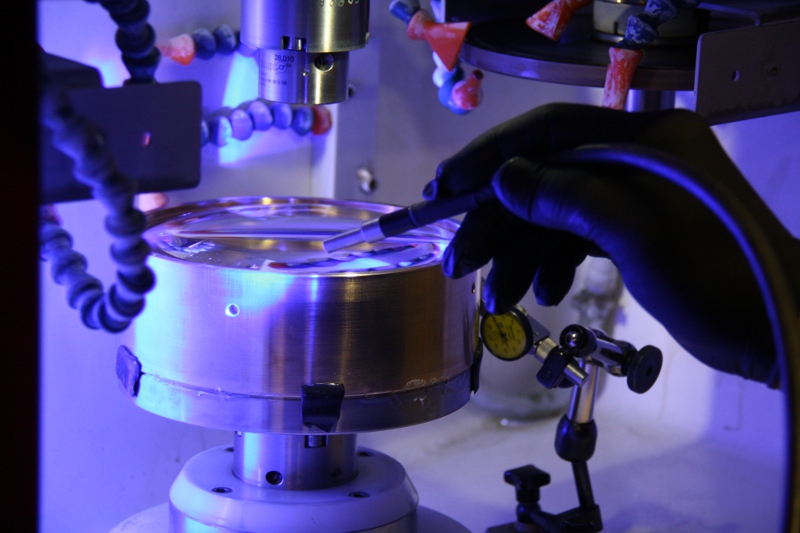

capabilities

CAPABILITIES

  • Between 2,7 mm and 310 mm
  • Non-circular plano optics → max. diagonal 400 mm
  • Linear: up to +/-0,01 mm
  • Angular: up to +/-10 arcsec (depends from geometries and dimensions)
  • Sferical and aspherical geometries
  • Plano surfaces
  • Specific and custom shapes on request
  • PMMA (for both CNC/prototypes and molding)
  • PC (molding only)

Up to λ/20

MATERIALS

All optical glasses and Fused Silcia from the major worldwide producers and able to work in the UV-VIS-SWIR and IR bandwidths.
Other materials available on request: ZnSe, ZnS, CaF2, MgF2, Sapphire, Germanium.
Our most important raw material suppliers are:

For any information do not hesitate to contact us
